YIJIA Side-Opening Vacuum Packaging Machine

Vacuum Packaging Machines

YIJIA Side-Opening Vacuum Packaging Machine

Side-door chamber for easier loading of buckets, bags and taller products with a 600 mm seal

YJ-0135 combines a 650×600×350 mm vacuum chamber, 600 mm sealing length and 8-10 mm seal width with side-door loading for taller or heavier packs.

Model: YJ-0135 SKU: YJ-0135
Side door for taller and heavier products650×600×350 mm vacuum chamber600 mm sealing length8-10 mm seal widthReference capacity of 2-3 cycles/min
Request quote All products
Information to prepare Container size, material, mouth diameter and sample photos Sealing material Target capacity Voltage / region Auxiliary process

Equipment summary

Selection summary

YJ-0135 combines a 650×600×350 mm vacuum chamber, 600 mm sealing length and 8-10 mm seal width with side-door loading for taller or heavier packs.

Product Description

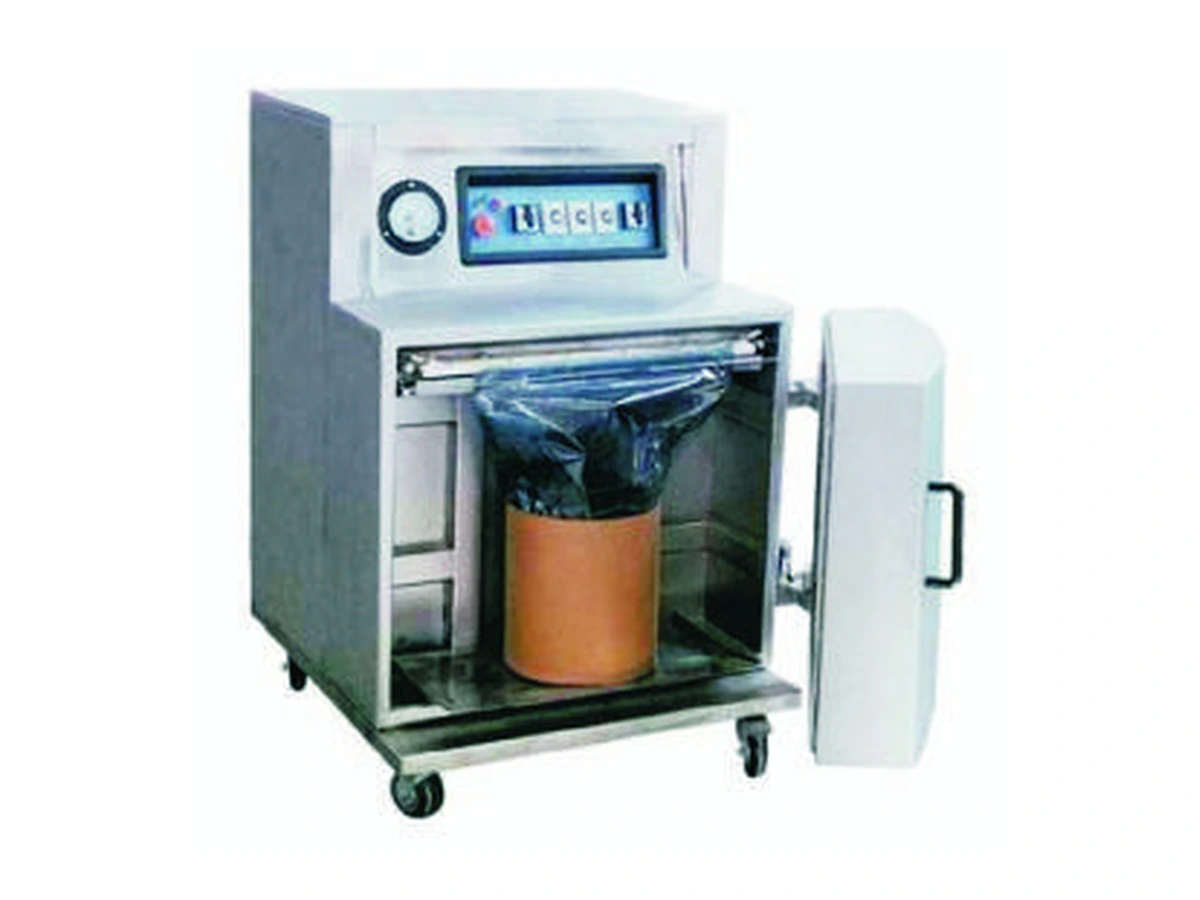

The side-opening chamber allows products to be loaded from the front, supporting buckets, bags and taller items that are difficult to lower into a top-opening chamber. The sealed side door closes before vacuuming and heat sealing.

Confirm total packed dimensions, center of gravity, bag-mouth height and liquid behavior. Closed-machine, open-loading and finished-pack images are from page 11 of the 2026 Yigao catalog.

Buyer selection points

Package objectConfirm product form, container material, opening size, capacity and leakage risk.
Sealing requirementConfirm film or foil material, sealing temperature, sealing strength and appearance requirements.
Line outputChoose semi-automatic, fully automatic or integrated-line solutions by target output per minute or hour.
Downstream integrationFilling, conveying, coding, labeling, inspection and collecting modules can be evaluated as needed.

FAQ

Why use a side-opening chamber?

It can simplify loading when a product is tall, heavy or difficult to lower from above, subject to chamber size and center of gravity.

Can it handle liquid products?

It can be evaluated, but fill level, bag-mouth height and vacuum speed must prevent liquid from entering the seal or vacuum system.
