The YJ-0083 desktop MAP tray sealer combines evacuation, two-gas mixing and heat sealing, with two-tray or four-tray tooling and a reference MAP speed of 4-5 cycles/min.
Product Description
The YJ-0083 is a desktop modified-atmosphere tray sealer for meat, produce, prepared food and ready meals. Evacuation, mixed-gas replacement and heat sealing parameters must be validated with the actual food, tray and lidding film.
Reference configurations include two trays up to 275 × 170 × 80 mm or four trays up to 170 × 120 × 80 mm. Reference output is 4-5 MAP cycles/min or 5-6 seal-only cycles/min; actual output depends on tooling, gas-replacement time, product temperature and operation.

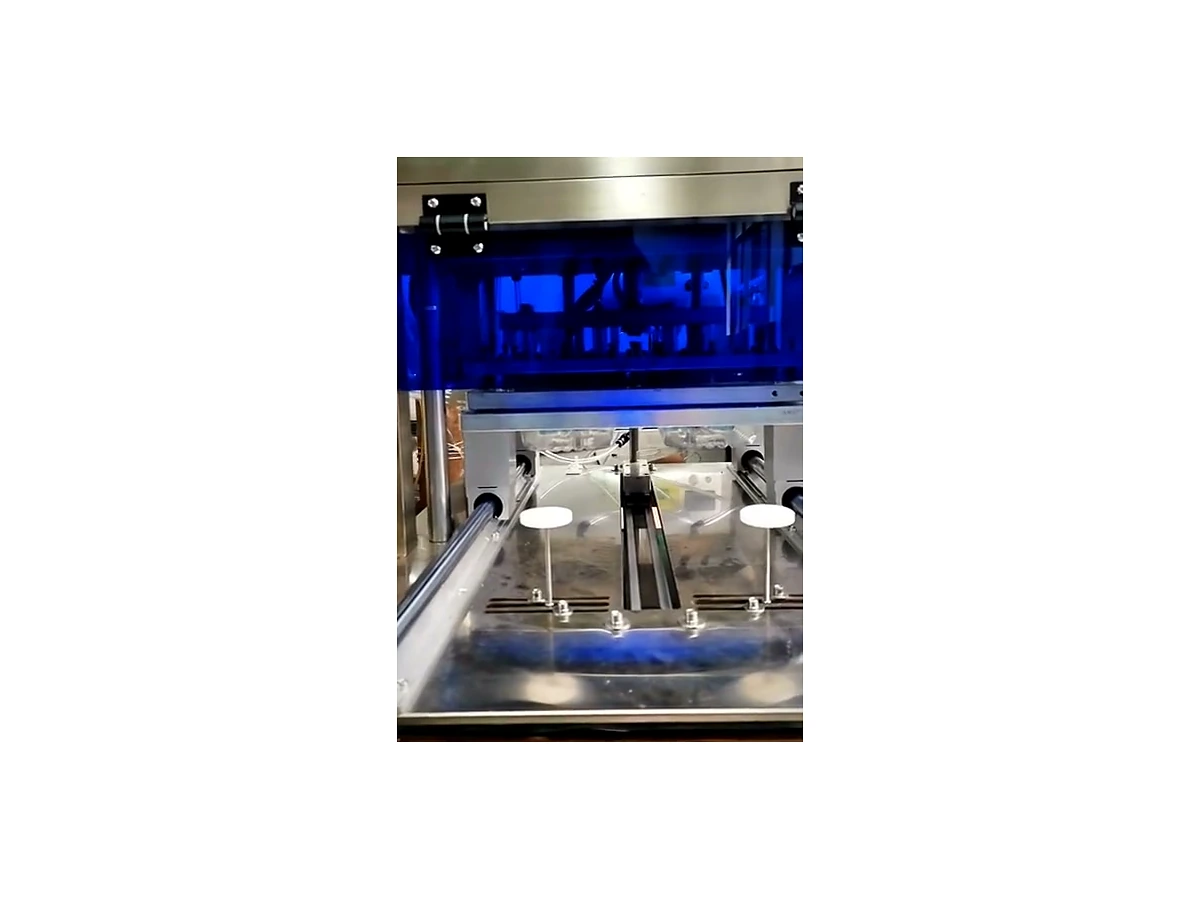

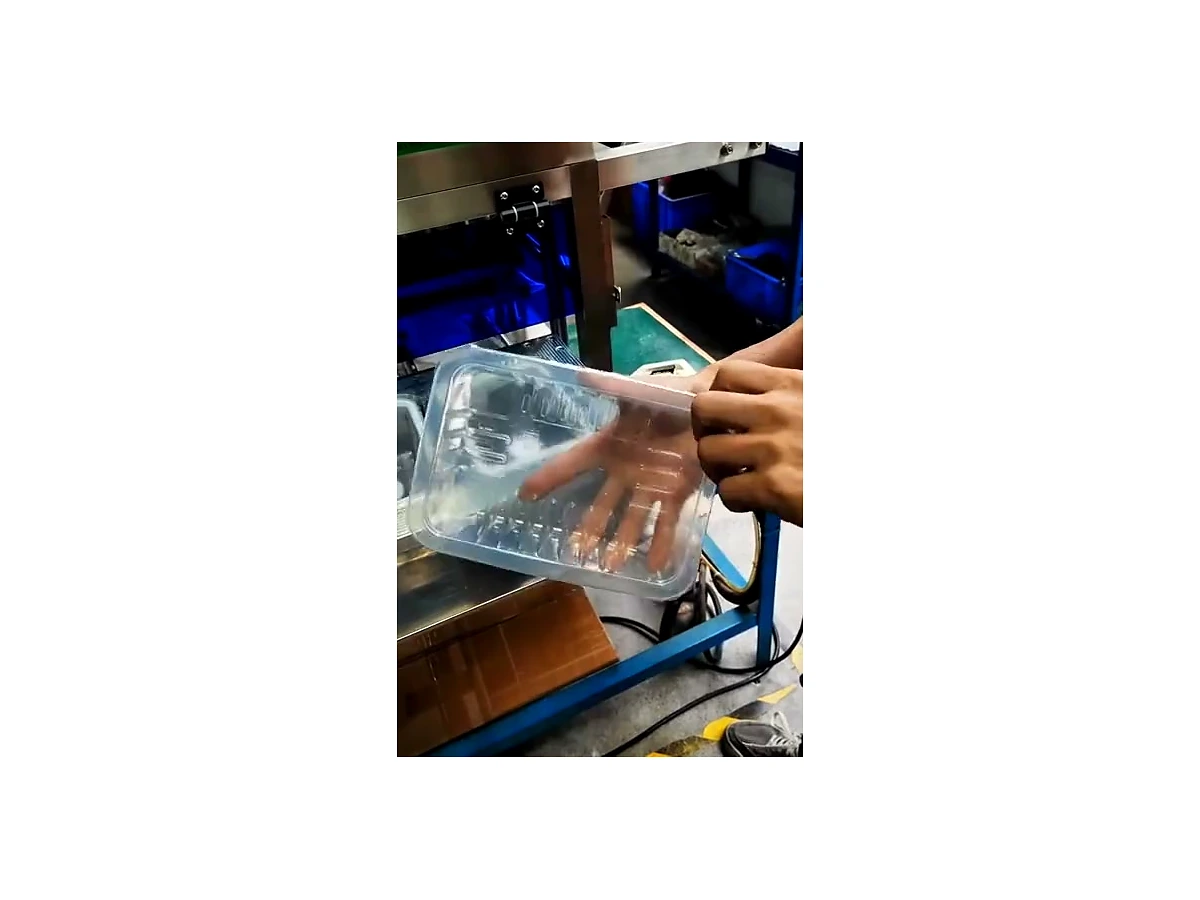

All three images document the same YJ-0083 unit: the complete machine, its two-tray sealing chamber in operation and a finished tray removed during that run. Independent source-site graphics were excluded without redrawing the machine.
Buyer selection points
FAQ
How do I choose two-tray or four-tray tooling?
Selection depends on tray dimensions, trays per cycle and target output. Actual trays and lidding film should be tested.
Can a standard gas ratio be used for every food?
No. Oxygen, carbon dioxide and nitrogen ratios should be validated for the food, initial microbial load, storage temperature and target shelf life.
Can the machine perform both MAP and seal-only packaging?
It can be configured for both, but cycle time changes with evacuation, gas replacement and heat-sealing settings.
