Equipment summary
Selection summary
The YJ-0106 integrates indexed chain conveying, metered filling, roll-film unwinding and heat sealing for preformed cups, bowls and small food containers.
Product Description
The YJ-0106 is an indexed chain conveyor filling and sealing line for preformed plastic cups, bowls and small food containers. The documented configuration uses four cavities: containers advance in carrier plates through the filling and heat-sealing area while roll stock is unwound over the container rims for thermal sealing.

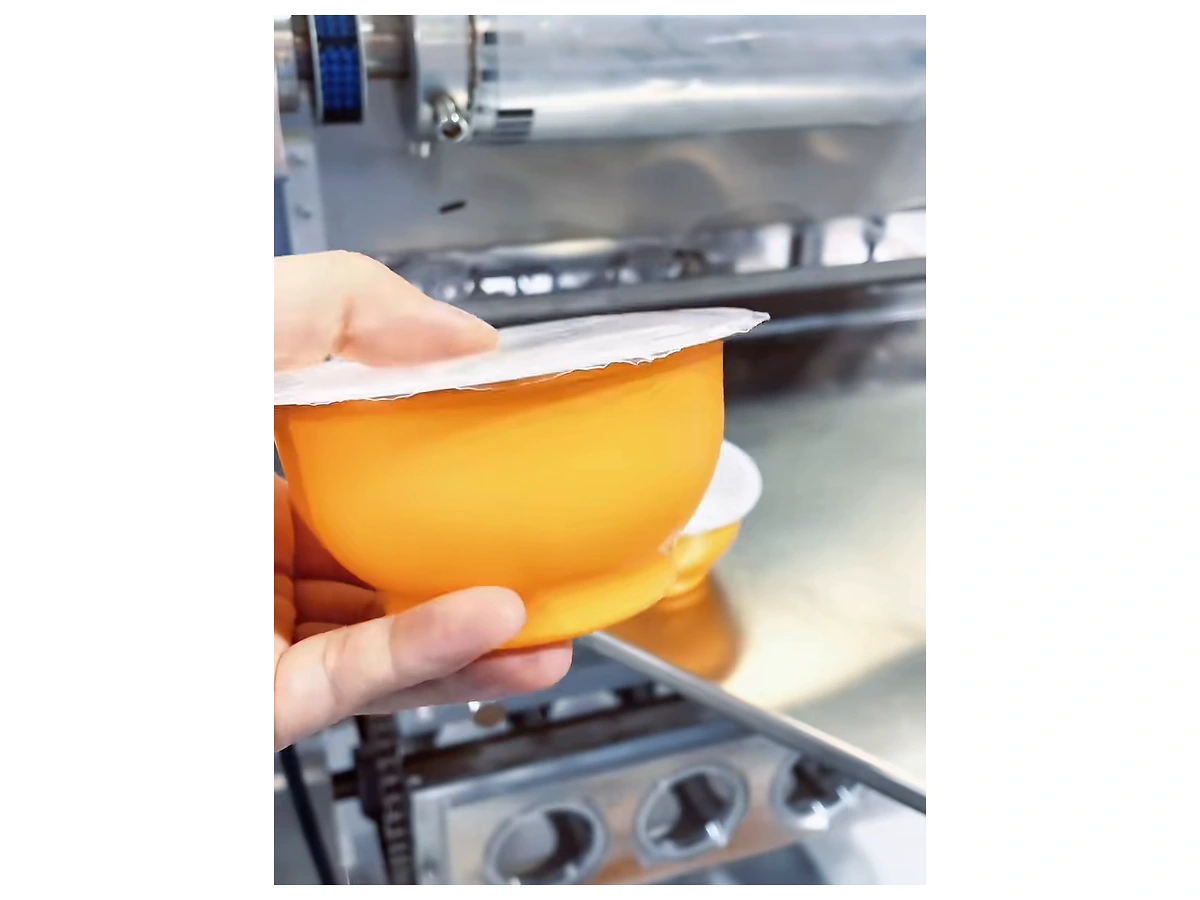

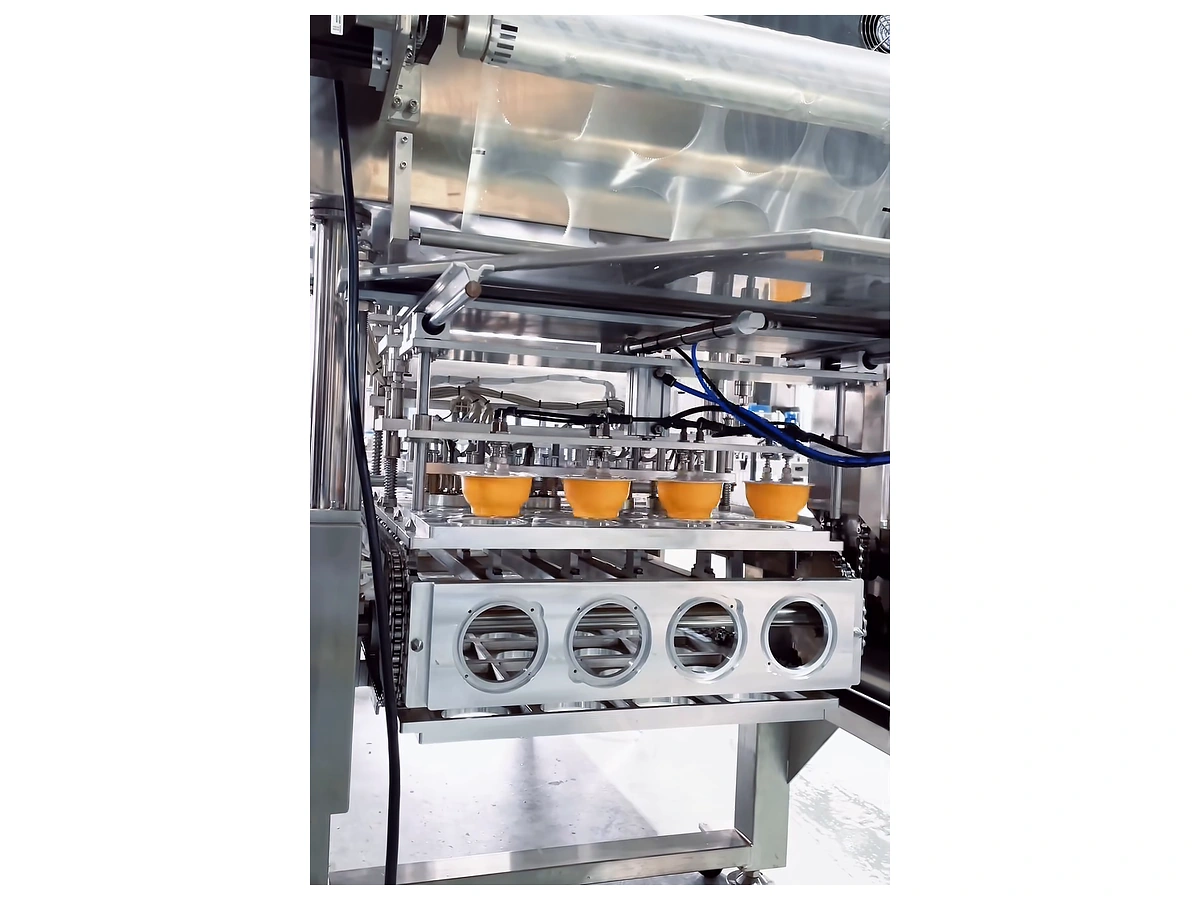

The main, operation and sample images are native frames from the same machine and the same production run. They show the complete line, four yellow cups inside the sealing station and a finished foil-sealed cup removed after that run. Processing was limited to background cropping, proportional resizing and mild clarity; no mechanical structure was redrawn and no logo was added.
This is a cup-and-container heat-sealing line, not an electromagnetic induction foil sealer for capped bottles. Tooling cavities, filling method, sealing settings, lidding material and line integration must be confirmed from actual containers, product and target output. Unverified power and speed figures are intentionally excluded.
Buyer selection points
FAQ
Is this an induction foil sealing machine?
No. It indexes cups in carrier plates and thermally seals roll film to their rims; capped-bottle induction sealing is a different process.
Is the machine always configured for four cups?
The documented machine has four cavities. Final cavity count depends on container dimensions, tooling space and target output.
Why are fixed speed and power figures not listed?
Product properties, cavity count, heating design and integrated operations change the final configuration. Verified parameters are supplied after sample review.
